BMP PIC VF (Pilot In Command Video Feed) Mount is designed to house one A/V transmitter, one 700L lens camera, and one 2S/3S Lipo battery, enabling independant and dedicated live video feed to the pilot, enabling independent flight and camera control for the DJI Inspire 1 (V1, V2, or Pro).


PICVF Mount snaps onto the back of the Inspire 1, secured via Velcro, dampened by shock absorbent double sided tape, installed in a non-invasive manner which doesn't break the bank or void manufacturer warranty. Once installed, BMP PIC VF system enables live video feed of aircraft's nose heading to PIC via an independent LCD receiver (not included).


The mount weighs only 29g with Lens mount, 35g, and with all modules, 50g. PIC VF Mount material: PLA, biodegradable thermoplastic. Note: PLA surface may show inherent imperfections not affecting performance.



PIC VF Camera Lens/GPS/OSD mount installation and options video

PIC VF - Pilot in Command Video Feed video

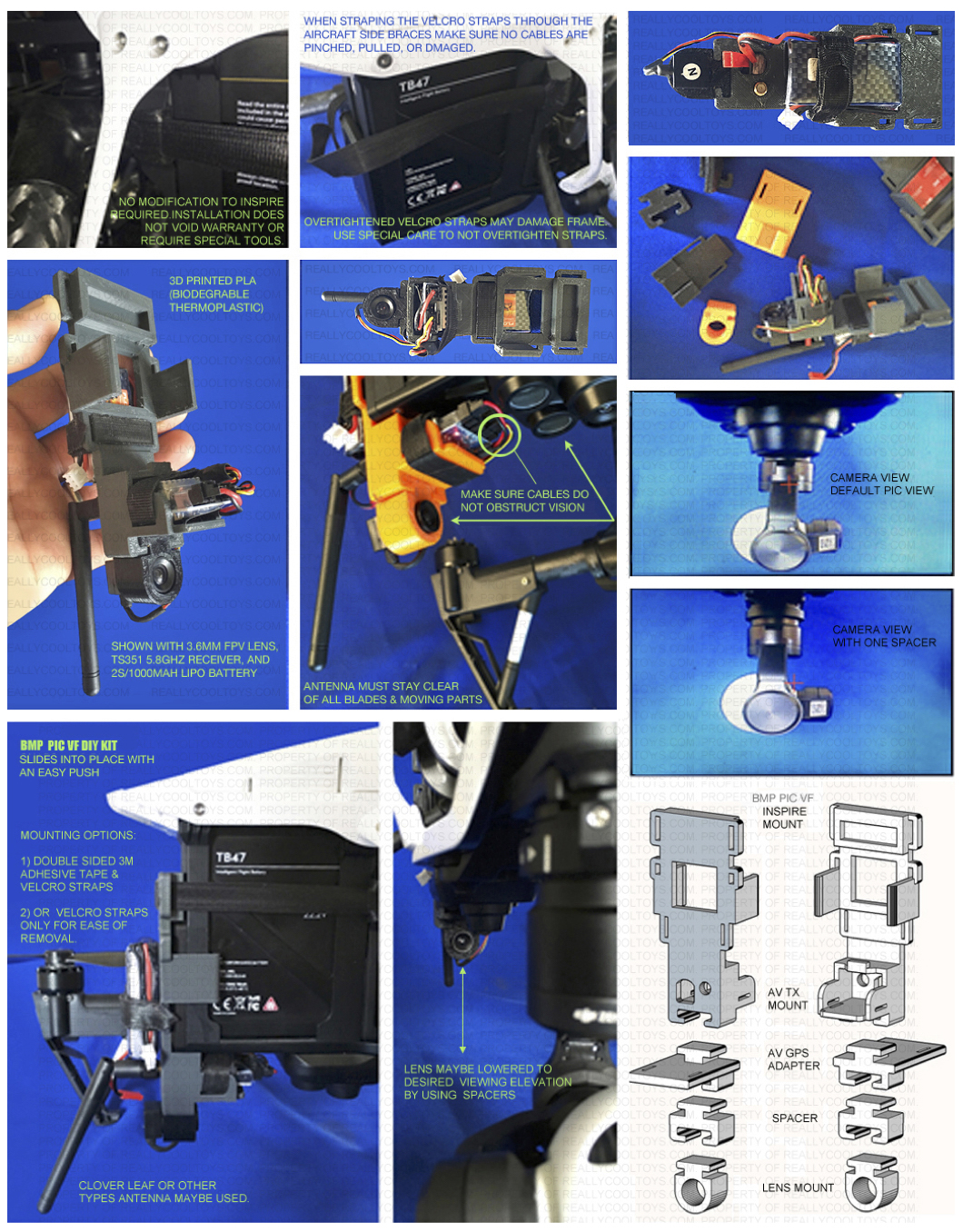

BMP PICVF Basic Installation Guide (below):


Specifications
General BMP PIC VF Mount: H 120mm (4.72") x W 57mm (2.24") x D 43mm (1.69") Weight with 2S 1000Mah battery: 147g Weight with no battery: 99g Weight Mount only: 29g with Lens mount: 35g w/ith all modules: 50g Material: 3D Printed PLA, biodegradable thermoplastic. Note: PLA surface may show inherent imperfections not affecting performance.
Camera Definition: 700TVL Illumination: 0.5lux, 0.001lux S/N: more than or equal to 48dB Gama: 0.45 Focal length: 3.6mm Frame speed: NTSC 30f/s White balance: auto Video out: CVBS 1Vp-p Audio out: Yes TV format: NTSC Power: 12V 1A Voltage range: DC 5V-12V Power consumption: 80mA, 120mA Size: 2.6 x 1.5 x 1.5cm (without cable)
Power Suggested (sold separately): 2S/3S Lipo Battery 450-1000Mah - 147g Weight with no battery: 99g. Battery size not to exceed: 2.25" x 1.125" x 0.5".
Transmitter A/V Wirless Transmitter Transmitter frequency: 5645-5945MHz; 8CH Frequency control: Built-in frequency and phase lock loop ANT connector: SMA (inside the needle) Video output: 1Vp-p 75ohm Audio output: 1Vp-p 600ohm Power supply: DC 12V Video: PAL/NTSC Small size SMD package: 55 * 26 * 17mm Built-in microphone audio pick up device. Built-in high-frequency PLL stability. 8 channel selectable. Low harmonic radiation. Direct input analog audio and video signals.

BMP PIC Video Feed

  • Product Code: PIC Video Feed
  • Availability: In Stock
  • $24.99
